Welded Coil in Coil
Welded Coil in Coil

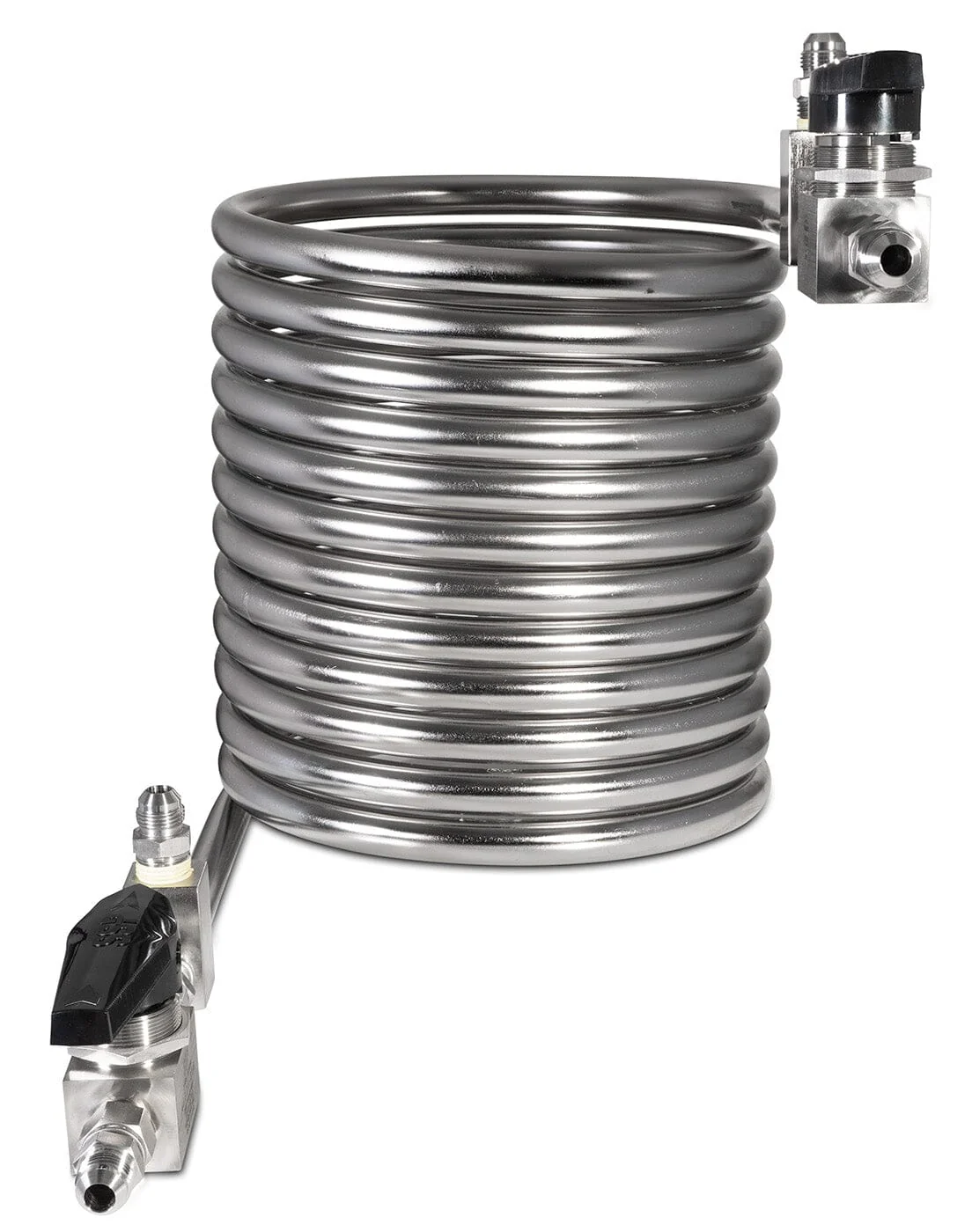

The Jacketed coil is a 40ft length of 1/2" tube that is completely encapsulated by the 3/4" outer jacket. The inner tube has 1/2" compression fittings and the outer tube has 1/2" FNPT connection ports.
The built version comes with USA made SSP instrumentation valves with 1/2" JIC connection for the inner tube and either 1/2" MJIC, 1/2" OR 3/4" hose barb connections for the outer tube.
The Coil itself is 10" In diameter and can be mounted successfully utilizing one of our 10" Pipe Hangers
Description
Welded Coil in Coil
The Jacketed coil is a 40ft length of 1/2" tube that is completely encapsulated by the 3/4" outer jacket. The inner tube has 1/2" compression fittings and the outer tube has 1/2" FNPT connection ports.
The built version comes with USA made SSP instrumentation valves with 1/2" JIC connection for the inner tube and either 1/2" MJIC, 1/2" OR 3/4" hose barb connections for the outer tube.
The Coil itself is 10" In diameter and can be mounted successfully utilizing one of our 10" Pipe Hangers
