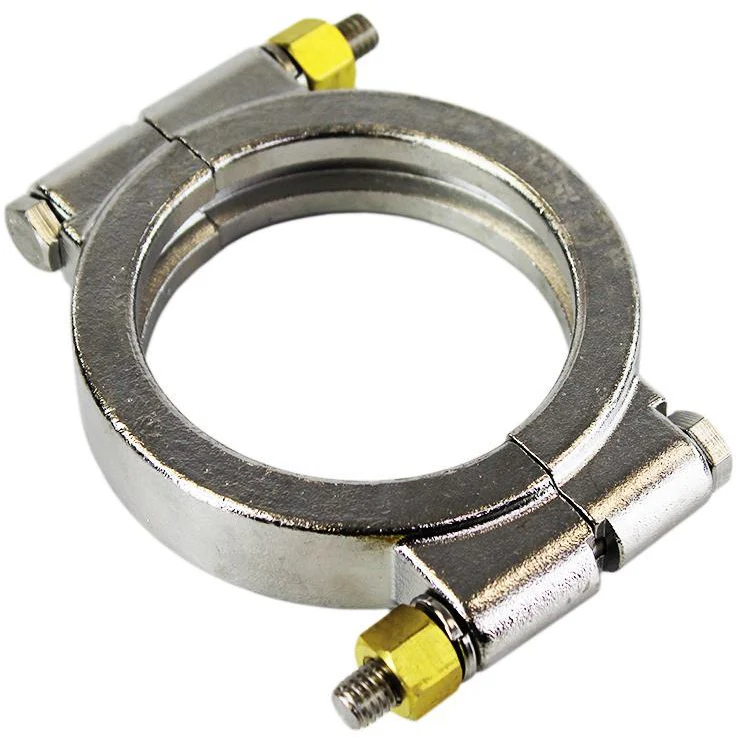

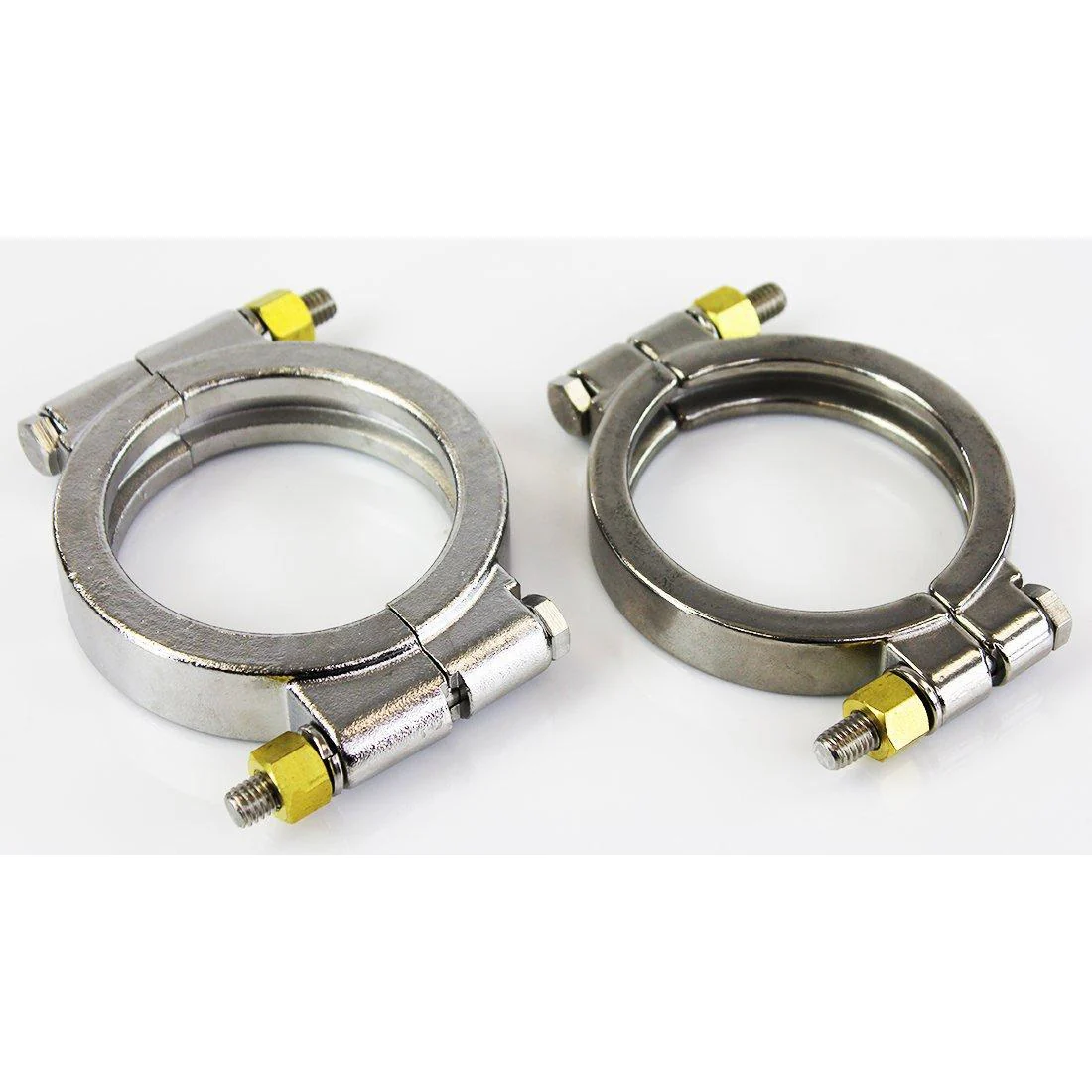

Pro Series High Pressure Clamps

Pro Series High Pressure Clamps

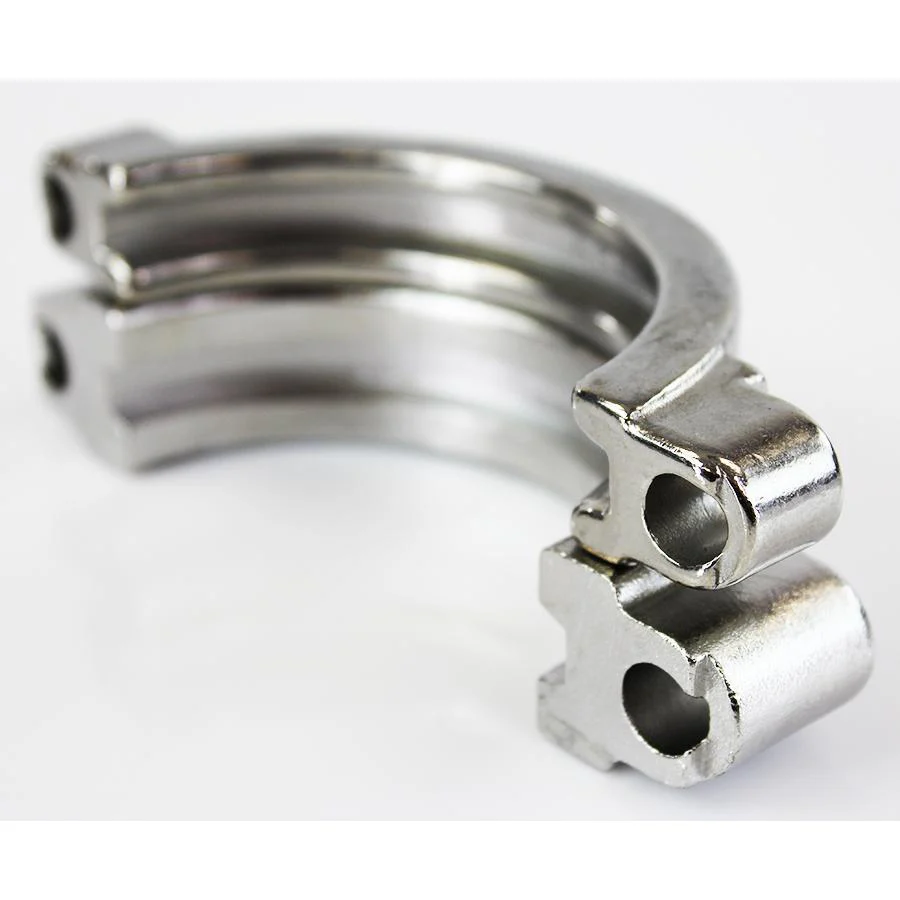

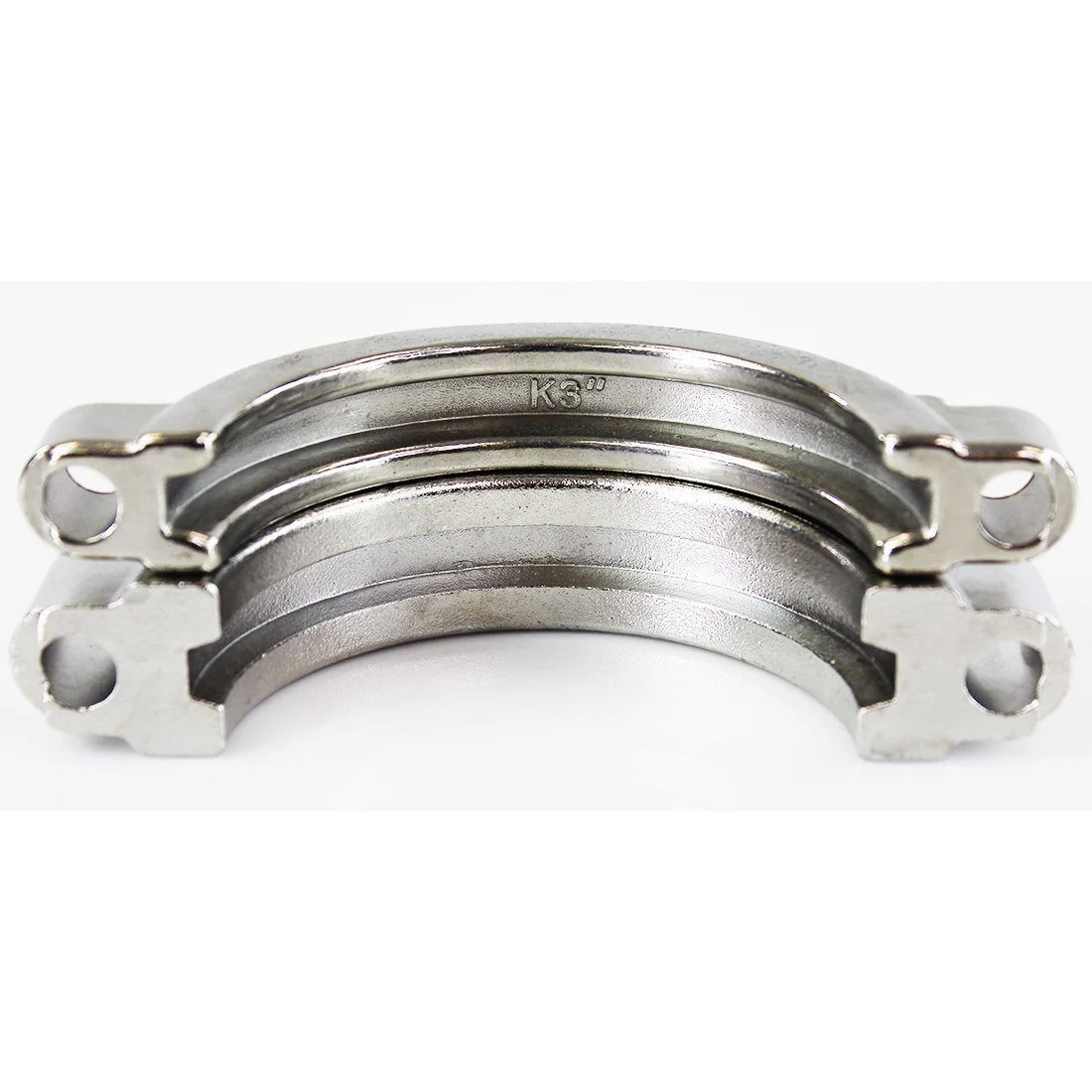

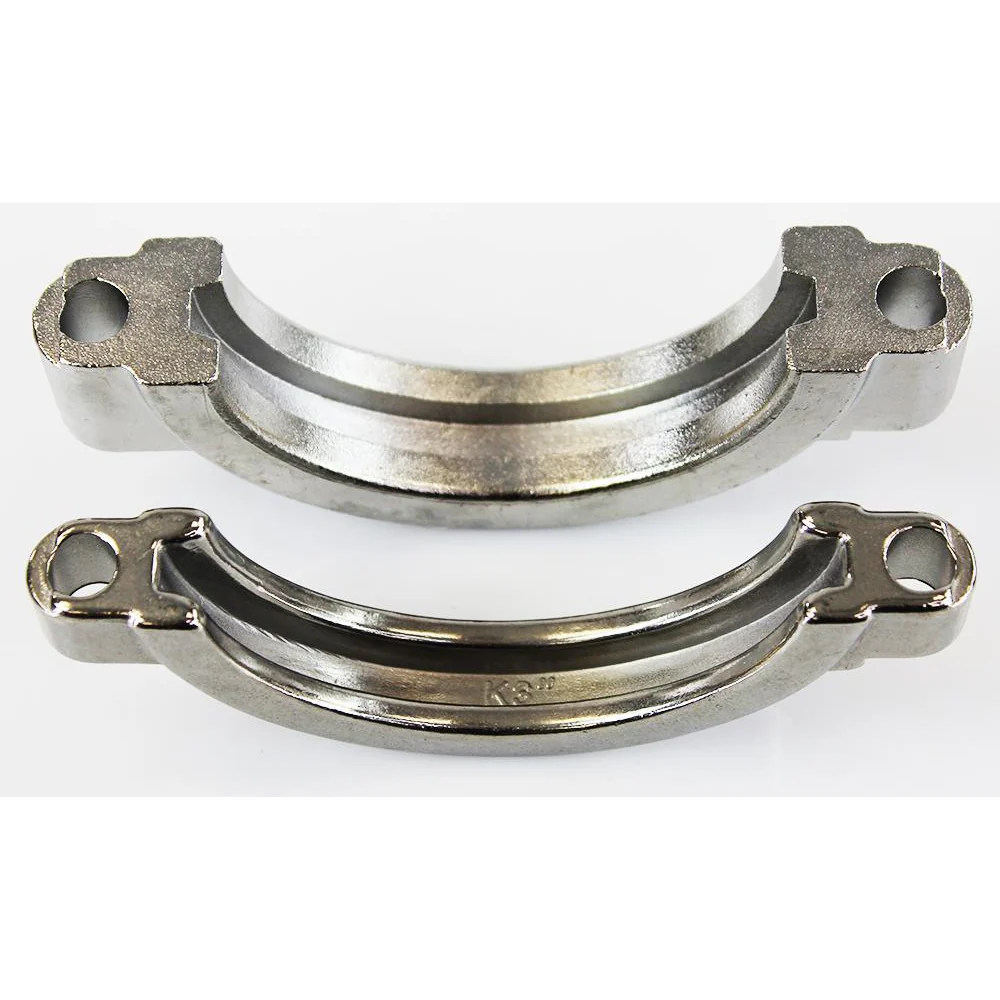

These are the Pro Series High Pressure Clamps for Heavy Duty Applications. These clamps are completely re-designed to be stronger and more industrial to last longer and stand up to higher pressure applications. The Internal flange of the clamp is much more precise offering better dispersion of pressure on the sealing face of the gasket which allows to the system to seal without having to overtighten the clamps.

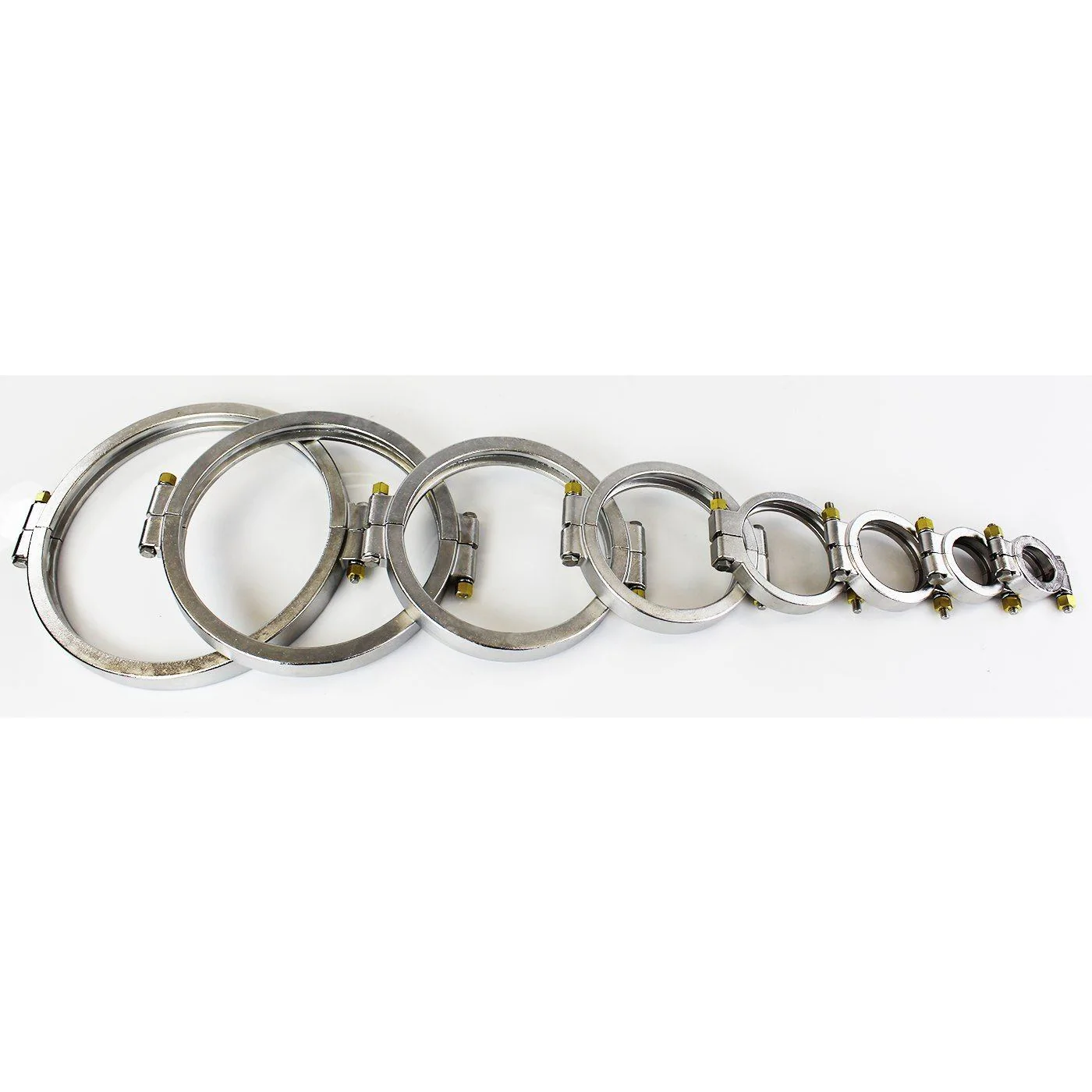

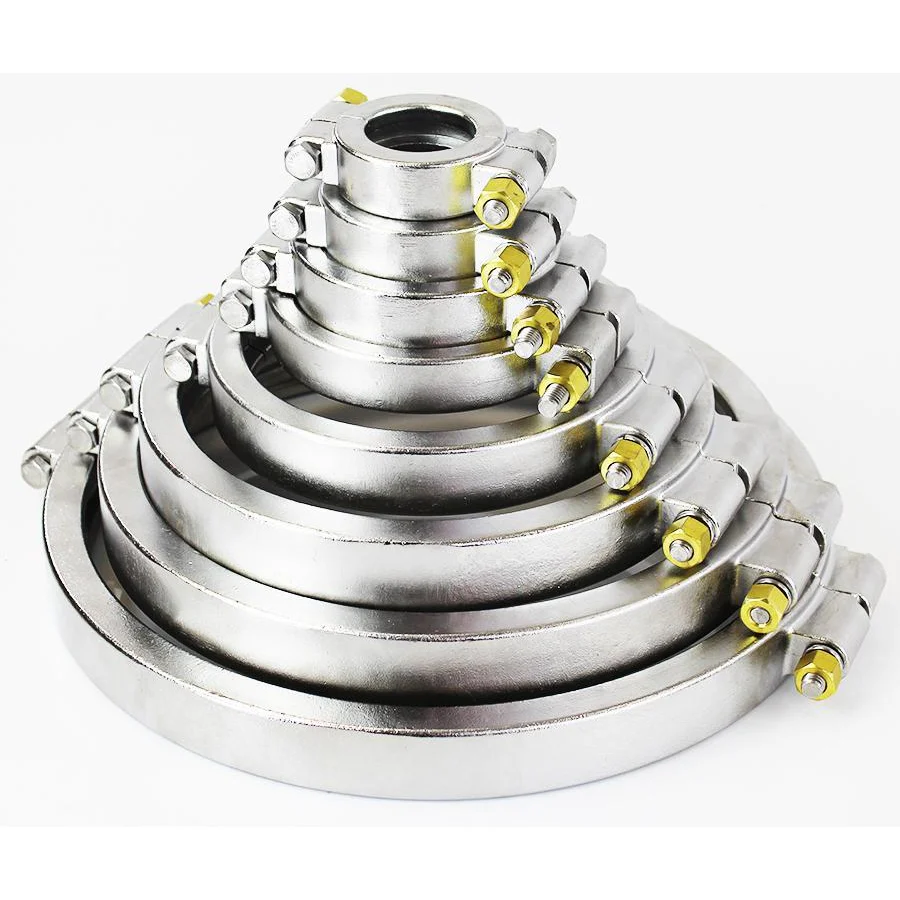

Sizes Available:

• 1.5" High Pressure Clamp

• 2" High Pressure Clamp

• 3" High Pressure Clamp

• 4" High Pressure Clamp

• 6" High Pressure Clamp

• 8" High Pressure Clamp

• 10" High Pressure Clamp

• 12" High Pressure Clamp

Specifications:

• Hinge Type: Bolted

• Material: 304 Stainless Steel

• Connection Type: Tri-Clamp
• Nut Size: 5/8" for All Clamp Sizes

Sizes	Max Torque (Nm / Ft Lbf / In Lbf)	Maximum Pressure @70F	Maximum Pressure @250F
1.5"	12-14 / 8.85-10 / 106-124	2500	1500
2"	12-14 / 8.85-10 / 106-124	2500	1200
3"	12-14 / 8.85-10 / 106-124	2500	1200
4"	12-14 / 8.85-10 / 106-124	1800	1000
6"	12-14 / 8.85-10 / 106-124	800	400
8"	12-14 / 8.85-10 / 106-124	500	250
10"	12-14 / 8.85-10 / 106-124	300	175
12"	12-14 / 8.85-10 / 106-124	250	125
