6" Tri-Clamp Dewaxer Columns

6" Tri-Clamp/ Tri Clover Dewaxing Columns

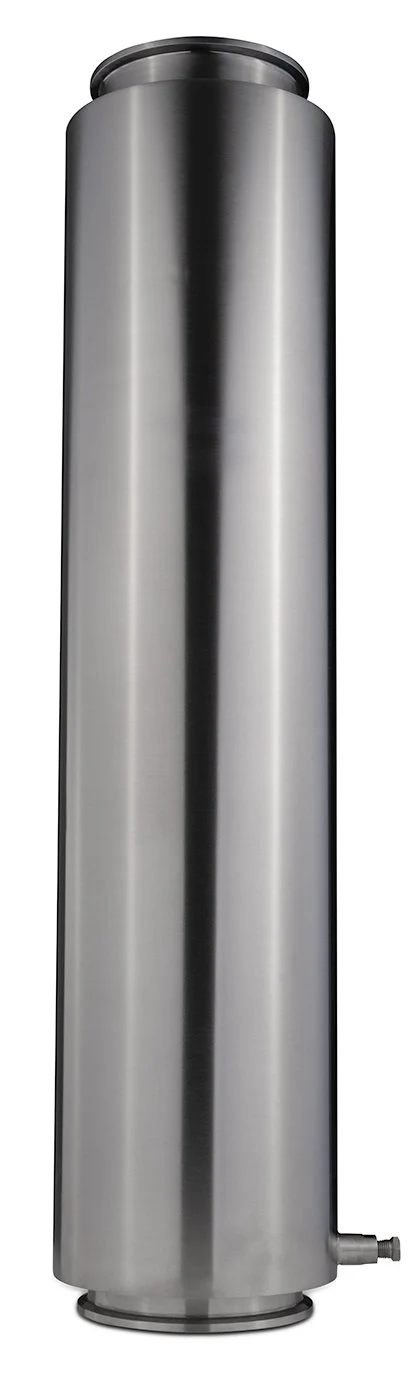

This is a 6" Tri-Clamp BVV™ Tri-Clamp Dewaxing Spool. It is intended to have dry ice put into the sleeve to chill the material inside the column.

**Note: When selecting a Pipe Hanger choose the size that correlates to the Sleeve OD NOT Spool OD

Sizes Available:

• 6" x 8" Tri-clamp Dewaxer Column

• 6" x 24" Tri-clamp Dewaxer Column

• 6" x 36" Tri-clamp Dewaxer Column

• 6" x 48" Tri-clamp Dewaxer Column

Specifications:

Tri-Clamp Size	6"
Material	304 Stainless Steel
Standard	3A High Polish
Sleeve OD	8.000"
Spool ID	5.782"
Spool OD	6.000"
Flange OD	6.570"
Bead Center	6.176"
Drain Port	1/4"-18 FNPT (Drain Plug Included)

• OD = Outer Dimension

• ID = Inner Dimension

Disclaimer to Customer: User assumes all responsibility and risks of the system for all Stainless Steel Parts bought separately to piece together a Closed Loop, Closed Column, or Open Blast Extractors. They DO NOT come with a standard 1 year system warranty, customer assistance on how to run your system, technical help or a guarantee of the system being tested.
