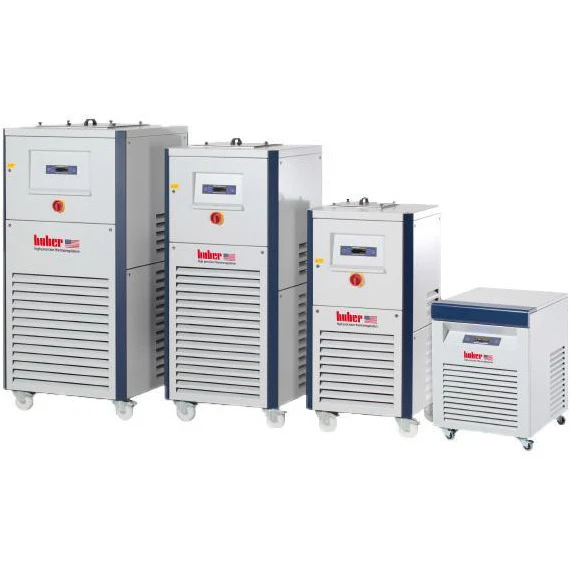

HUBER CS Chillers

The new CS chillers expand the Huber product range with compact and highly affordable recirculating coolers. The Huber CS chillers combine cool and smart technology in one unit. The new chillers further reduce water consumption and lower the operating costs for many applications. The investment pays itself off after a short time because of the water savings and the low purchase price.

Your advantages:

Working temperature from -20 °C to +15 °C
Cooling power up to 70 kW
Pump performance up to 125 l/min
Quiet operation less than 79 db
Economic and ecological solution to eliminate costly water waste
Easy to use and maintenance free

With a cooling power up to 70 kW, the devices are particularly suited for constant temperature control for laboratory applications, e.g. for cooling vacuum pumps, rotary evaporators, electron microscopy, AAS-devices, ICP-devices, extraction, distillation and many more.

Sku	Model	Temperature Range	Pump Vapacity Max/ Pump Connection			Cooling power (kW) at (°C)					Heating Power	Noise Level	Dimensions	Voltage	Data Sheet
Sku	Model	(°C)	(l/min)	(bar)		15	10	0	-10	-20	(kW)	(dB)	W x D x H (inch)		PDF
VDH1100664	CS 25	-20...15	50	4.5	1/2"	3.5	2.5	1.6	0.98	0.7	-	60	22.8 x 26.0 x 32.3	208V 2~ 60Hz
VDH1101336	CS 35	-20...15	30	4.0	1/2"	4.0	3.5	2.1	2.0	0.8		62	22.8 x 26.0 x 32.3	208V 2~ 60Hz
VDH1100689	CS 50	-20...15	83	4.0	3/4"	8	5	4.2	3.5	2	-	63	26.8 x 28.7 x 59.8	460V 3~ 60Hz
VDH4100126	CS 50-H	-20...85	83	3.7	3/4"	8	5	4.2	3.5	2	2.8	63	26.8 x 28.7 x 59.8	460V 3~ 60Hz
VDH1100690	CS 100	-20...15	83	4.0	3/4"	18	10	9.5	7.5	4.5	-	70	31.5 x 33.5 x 65.6	460V 3~ 60Hz
VDH4100106	CS 100-H	-20...85	83	3.7	3/4"	18	10	9.5	7.5	4.5	5.5	70	31.5 x 33.5 x 65.6	460V 3~ 60Hz
VDH1100688	CS 200	-20...15	125	4.2	1"	28	20	18	15	9.5	-	78	55.1 x 39.4 x 70.9	460V 3~ 60Hz
VDH4100091	CS 200-H	-20...85	125	4.2	1"	28	20	18	15	9.5	5.5	78	55.1 x 39.4 x 70.9	460V 3~ 60Hz

Process Chillers

HUBER CS Chillers

Huber adapter M16x1f-1/2"m

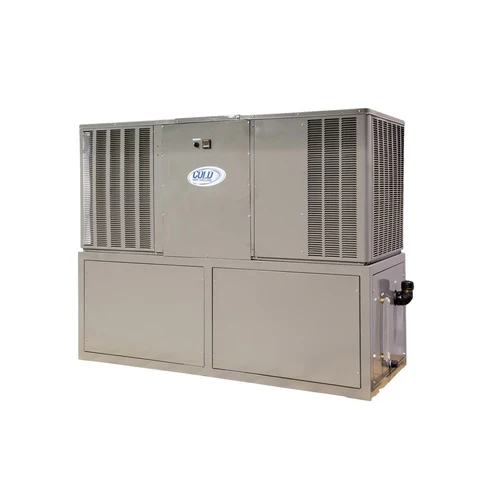

10 Ton Low Temp Glycol Chiller

5 Ton Low Temp Glycol Chiller

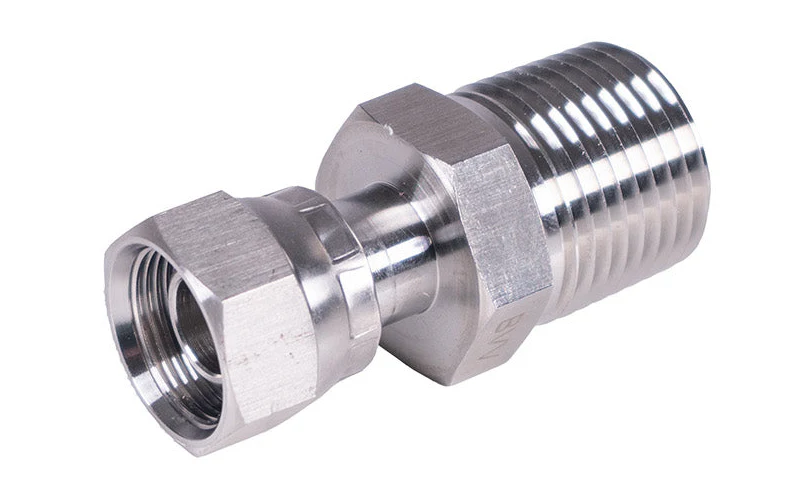

M16x1 F X 1/2" NPT Stainless Steel Adapter (2 pack)

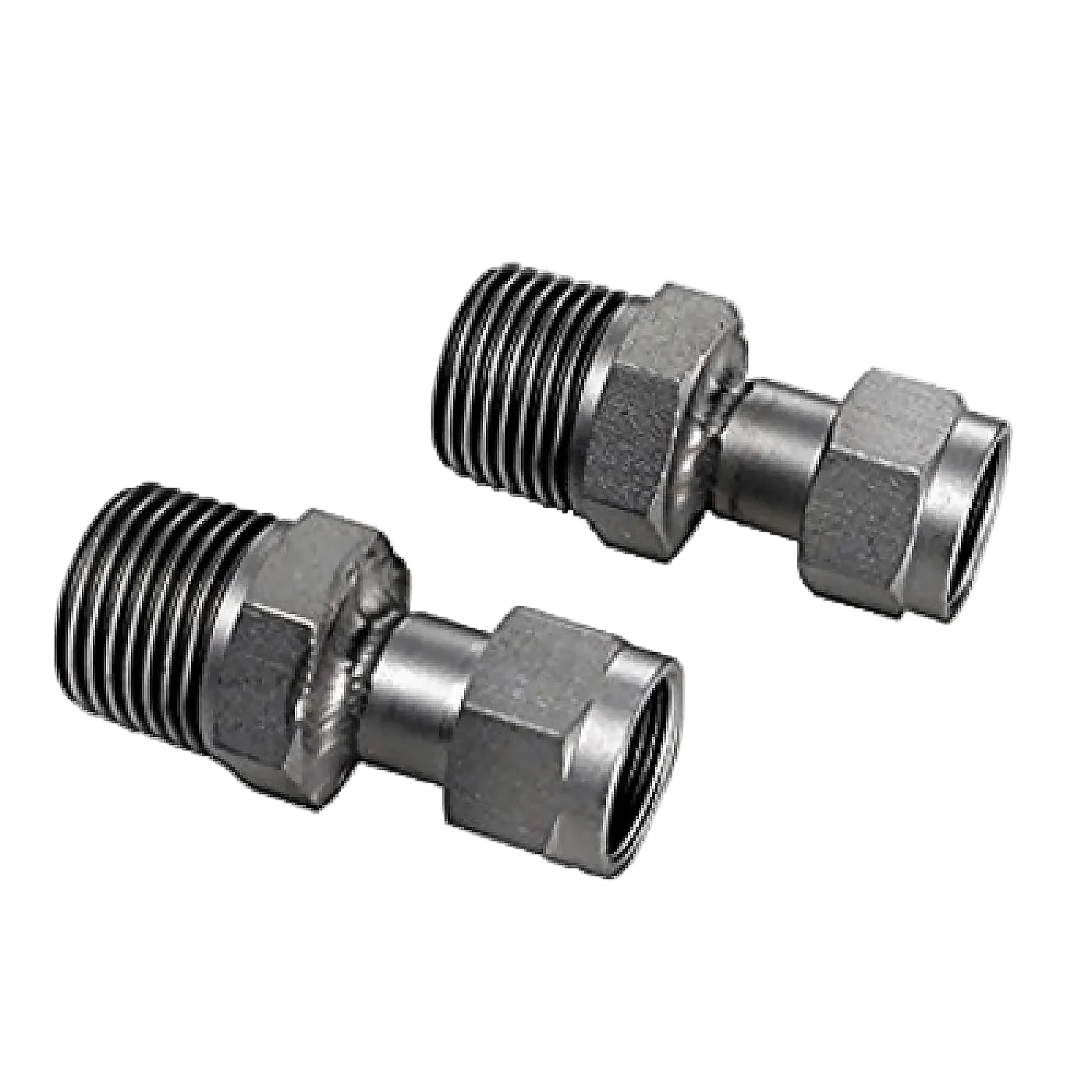

Julabo Adapter M16x1 f to NPT 1/2″
